Wrapping Machines

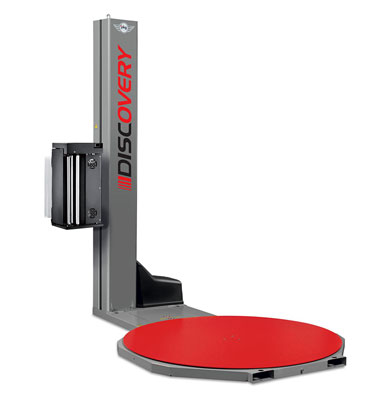

Discovery
A very easy in use pallet wrapper with a great operational reliability, robust and complete with all performances you may request from a wrapping machine.
Trans pallet version with the possibility to modify the in-feed entrance in any moment. Available in both E-Discovery and Discovery version.
- Turntable ø 1650 mm.
- Max. Load weight: 2000 Kg.
- Max. Load dimensions: 1000x1200 mm.
- Load height sensing photocell.
- Wrapping height Max. 2500 mm.
- Indication alarms.
- Opening for forklift front/back.
- Key block.
- eight of film used (for MPS-MPS2 on request).
Discovery-A
A compact, high performance rotating arm machine to wrap pallets with stretch film. Reliable and robust construction. The machine will be produced to your requirements.
- Max. load weight: 2000 Kg.
- Load dimensions: 1000 x 1200 mm.
- Wrapping height: 2000 mm.
- Max. Rotation speed: 16Rpm.
- Working height: 400-500 mm.
- Total installed power: 3Kw
- Std. Power supply: 400V-50 Hz – 3PH+N+G
- Machines protection: IP54
- Operating pressure: 6bar.
- Various options available.

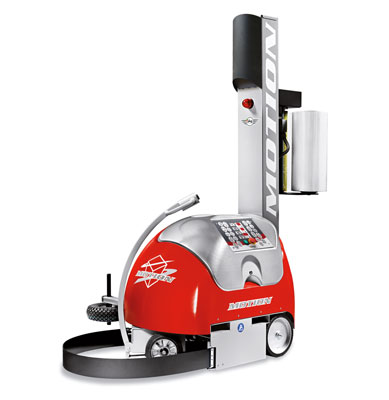

MOTION
MOTION Automotive wrapping robot to wrap pallets of any dimensions, weight and forms while using stretch film or net film.
- 2 AGV batteries 12 v – 110 ah serial connected.
- High frequency battery charger integrated.
- Load height sensing photocell.
- Wrapping height max. 2150 mm. (2650 mm, 2950 mm optional).
- Indication alarms.
- Opening for forklift Left&right.
- Keypad lock.
- Speed of carriage separated
adjustable in upwards & downwards
New Scale Kit
New weighing system for machine with turntable diameter 1500/1650
- Can be used on machines with 1500-1650 mm base
- Height off floor with integrated scale 10 cm
- Scale capacity 2000 kg
- division 500 grams
OPTIONAL
- Ethernet card
- WiFi card
- Thermal or thermal transfer printer
- Loading ramp

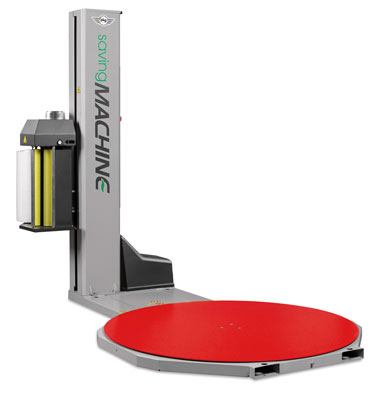

SAVING MACHINE
SAVING MACHINE A simple and economic machine, easy to use, robust and with all the performance features of a larger machine.
- Turntable ø 1500 mm.
- Max. Load weight: 1500 kg
- Max. Load dimensions: 800x1200mm.
- Load height sensing photocell.
- Wrapping height max. 2000 mm.
- Start/stop of rotation in phase adjustable by inverter.
- Speed of carriage separated
adjustable in upwards & downwards
movement. Beeper at cycle start and
phase stopping at cycle end.
- Emergency stop button following CEnorms.
- Button to reset machines. Functions following CE norms.
- Stop and rise of carriage with sensor in basement.

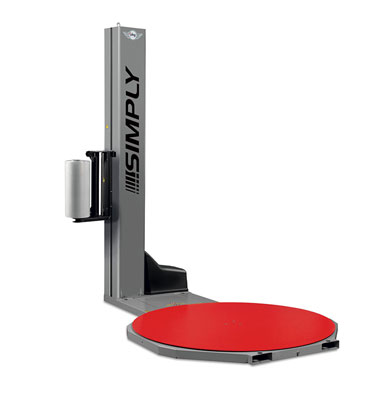

Simply Machine
Economic and simple machine, very easy in use, robust, and with all the performances of the bigger machines. Ideal for use with prestretched film and can also be used with film without carton core (optional).
- Turntable ø 1500 mm.
- Max. Load weight: 1500 Kg.
- Max. Load dimensions: 800x1200mm.
- Load height sensing photocell.
- Wrapping height Max. 2150 mm.
- Start/stop of rotation in phase adjustable by inverter.
- Speed of carriage separated adjustable in upwards & downwards movement.
- Beeper at cycle start and phase stopping at cycle end.
- Emergency stop button following CE norms.
- Button to reset machines. Functions following CE norms.
- Stop and rise of carriage with sensor in basement.

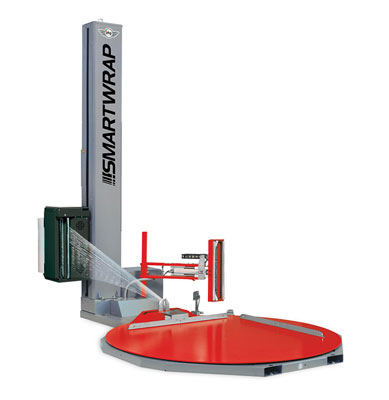

SMARTWRAP
Automatic standalone wrapping turntable with clamp and cutting system, simple and reliable.
- Turntable ø 1800 mm.
- Max. Load weight: 2000 Kg.
- Max. Load dimensions: 1000x1200 mm.
- Load height sensing photocell.
- Wrapping height Max. 2500 mm.
- Indication alarms.
- Opening for forklift front/back.
- Key block.
- Automatic clamp and cutting system.
- Perimeter protections with photocells and cycle start button external.

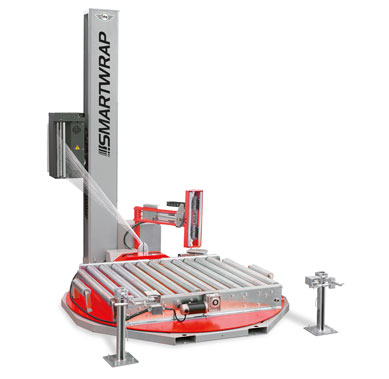

SMARTWRAP-A
SMARTWRAP-A Automatic stretch wrapper perfect to create a packaging station with motorized roll conveyors in entrance and exit.
- Turntable ø 1800 mm.
- Max. Load weight: 1500 kg
- Max. Load dimensions:1000x1200 mm.
- Load height sensing photocell.
- Wrapping height Max. 2300 mm*.
- Height of roll conveyors from floor: 190 mm to 500 mm.
- Indication alarms.
- Automatic clamp and cutting system.

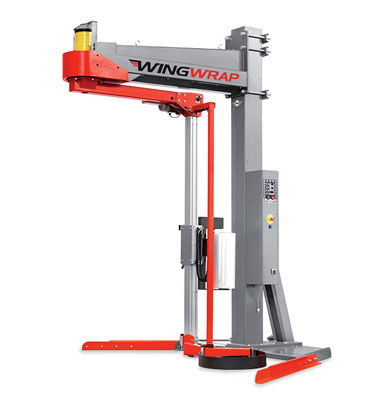

WINGWRAP
Stretch wrapper by rotary arm, easy in use with a great operational reliability, robust and complete with all performances.
- Max. Load dimensions: 1000x1200 mm.
- Load height sensing photocell.
- Wrapping height Max. 2000 mm.
- Indication alarms.
- Opening for forklift front/back.
- Key block
